Relations

Relations record how two images relate: same picture in two files, same subject drawn twice, an edit and its original. monbooru tracks four declared relation types, plus a rejection list:

Declare a relation by hand with Add a relation on any detail page. When monloader pushes a booru post that declares a parent post, the pair is linked automatically as a derivative once both are in the gallery.

Collections are a separate, lighter grouping mechanism outside the relation graph.

Finding candidate pairs#

monbooru computes a perceptual hash (a fingerprint of what the image looks like, one that survives resizing and re-encoding) for every image and uses it to suggest near-duplicate pairs. New images are probed as they arrive, Relations -> Find new pairs scans everything added since the last scan, and a nightly pass can be scheduled under Settings -> Schedule. If older images predate perceptual hashing, run Settings -> Maintenance -> Compute hashes once to backfill.

Settings -> Relations -> pHash matching distance (default 4, range 0..12) sets how different two images may be and still get paired; lower means fewer, more confident pairs. Saving a stricter setting also drops the queued pairs it rules out, so a session never asks about candidates the current settings would not have found. Loosening a setting takes effect the next time Find new pairs runs.

Pairs whose two images share a collection are left out of the queue - the collection already relates them. A per-collection find relations switch on the Collections page opts a collection back in.

Archives (cbz/zip) are never paired by image: a book’s perceptual hash is only its cover page, so a cover match says nothing about the pages inside. They are matched by shared tags instead; byte-identical copies still show up under Duplicate files.

Pairs that share rare tags#

A perceptual hash cannot see that a recolour, a redraw or a fan piece belongs with its original: the pixels are too different. Tags can. With Settings -> Relations -> Also queue pairs that share rare tags on (the default), every find-pairs run does a second pass that scores images against each other by the tags they have in common, weighting rare tags heavily. It costs a full pass over the library on every run and only pays off once your images are tagged, so turn it off if your library is large and mostly untagged.

Rare tag similarity match strength sets the bar for queueing a pair: the default 85% keeps the queue to the pairs worth a decision; lower it toward 70% to catch more variants at the cost of a longer queue. Try similar:<id>~0.85 in the search bar to get a feel for a level in your library (a related but different score: similar: counts every shared tag equally instead of weighting rare ones).

A pair also needs ten meaningful tags in common before it is queued. Two images can share a character and an artist and nothing else, which scores high on very little evidence; the floor keeps those out. Tags carried by a large share of the library do not count, and neither do tags that arrived through an implication.

The swipe session#

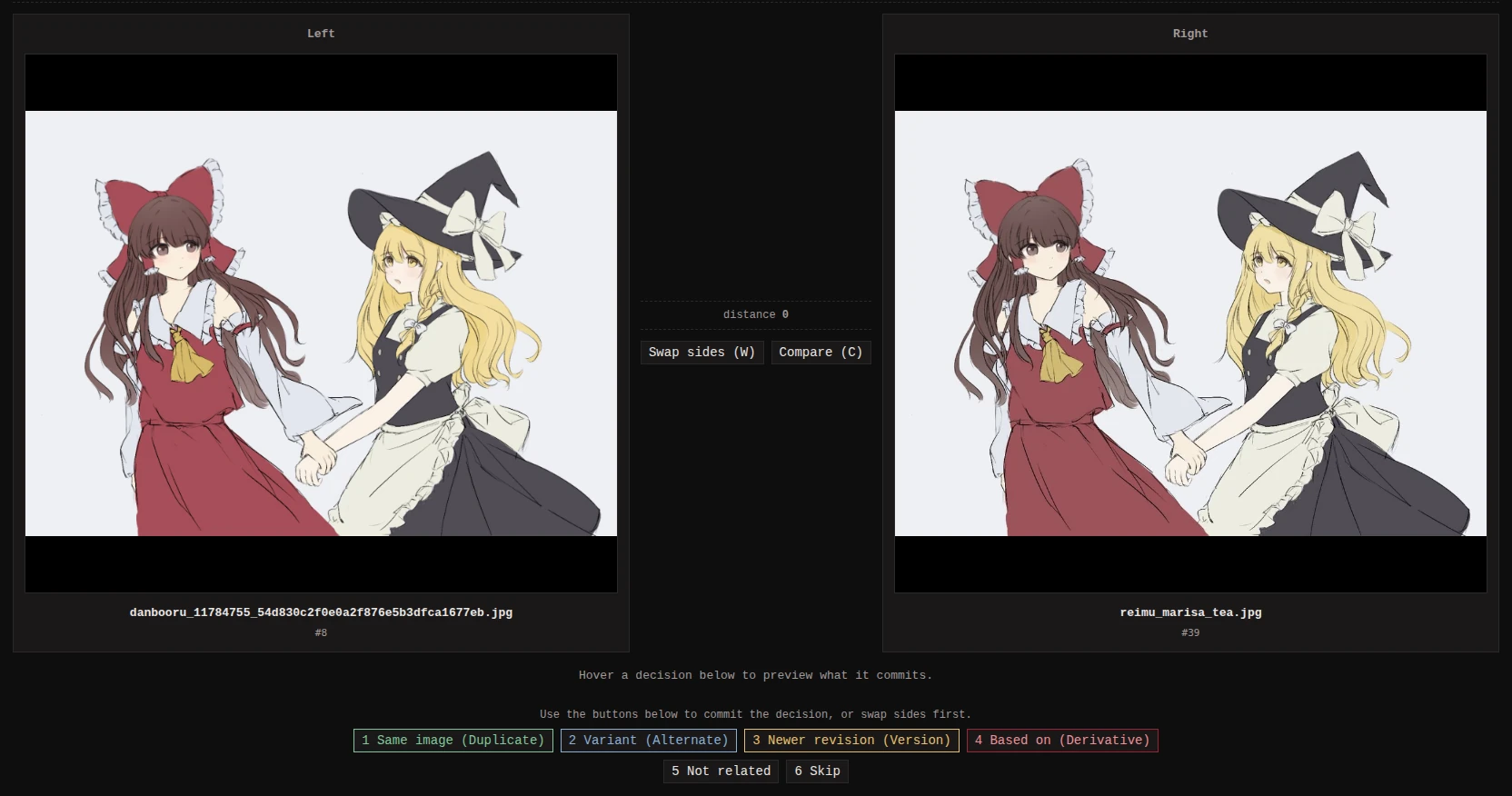

Relations -> Start a session walks the queue pair by pair: decide each pair or skip it. Skipped pairs sit out until Relations -> Reset skipped brings them back. Confident pixel matches come first, tag matches after.

The line between the two images says what put the pair in front of you: the pHash distance, the rare tag similarity (with the shared tags that produced the score listed in the comparison table), both when the two detectors agree, or reopened by you. On a pHash match the larger file goes on the left; on a tag match the older image does.

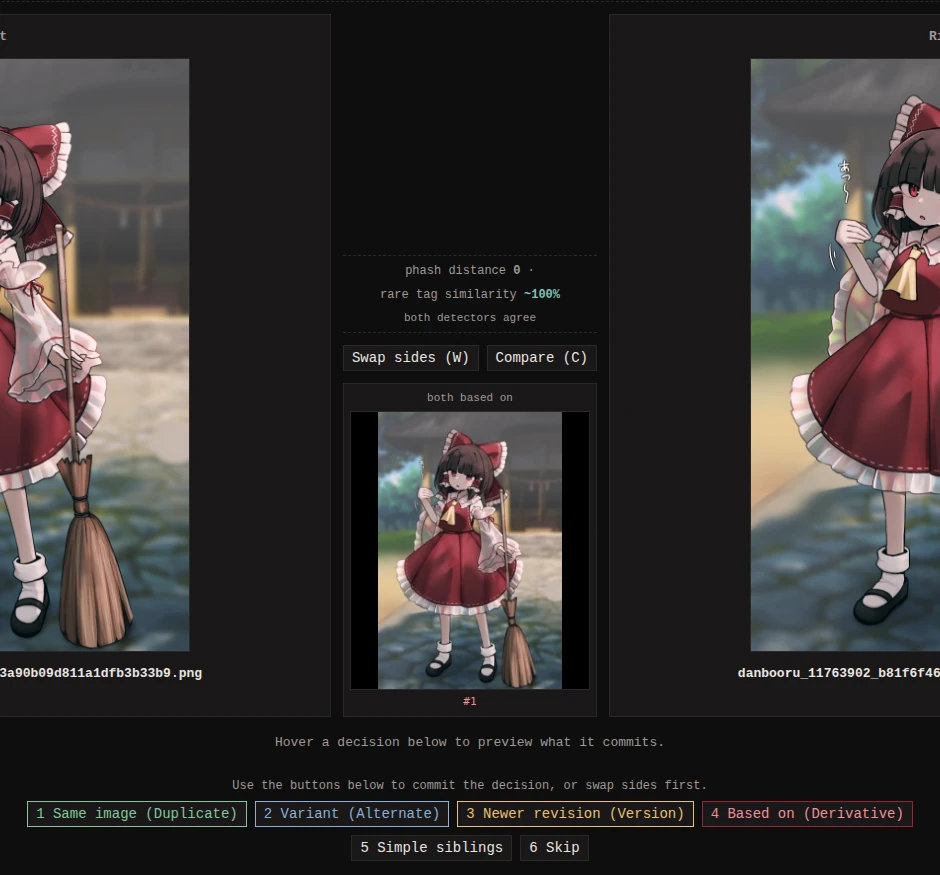

When the two images both descend from the same image - common after a booru import brings in a parent and its children - that nearest shared ancestor is shown between them. The pair is still asked about because two images from one tree can be duplicates of each other, but the rejection is recorded as Simple siblings instead of Not related: the same decision, labeled for this case. Pairs the tree already answers - one image descends from the other, or both sit in one revision chain - never reach a session at all. If a tree turns out to be wrong, unlink the edge and the pair becomes a candidate again.

Marking a pair a duplicate asks whether to delete the duplicate’s file. When the duplicate carries tags the original lacks, the prompt also offers Copy unique tags onto the original first - the copy runs either way, so you can consolidate the tags and still keep both files.

Two pickers above the pair shape the session. Found by narrows the queue to one detector, so you can clear the pixel matches in one sitting and leave the tag matches for later; it resets to Both each new sitting. Order switches between smallest distance first, largest file first (handy when merging into the best-quality original), and random; the default for new sessions is set under Settings -> Relations.

Browsing what you declared#

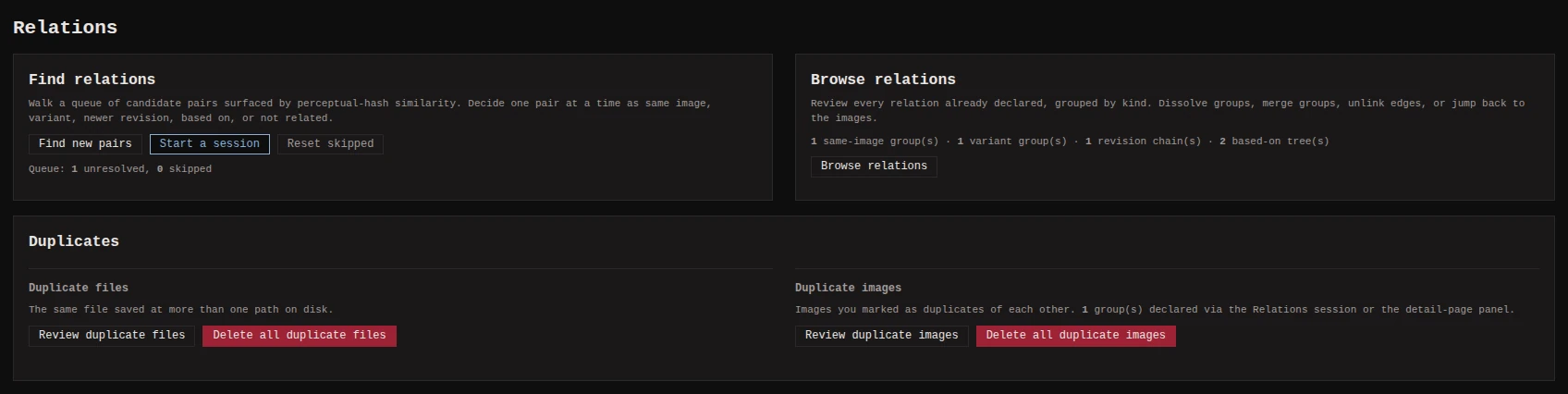

Relations -> Browse relations lists every declared relation, one tab per type - including Not related, so a rejected pair can be found and undone. From here you can unlink an edge, dissolve a group, and merge same-image groups into one.

Review again undoes one decision and sends that pair straight back to a session. On a longer chain or tree there is no single pair to reopen, so each image in the card carries its own: it reopens the link between that image and the one it hangs under, and the rest of the tree stays as it is.

Cleaning up duplicates#

Two cleanup tools live under Relations -> Duplicates, and they are deliberately separate:

• Duplicate images walks the declared duplicate groups - two distinct images you marked as the same picture. Deleting removes the non-original member; Copy tags previews and layers the duplicate’s tags onto the original first.
• Duplicate files walks byte-identical files stored at more than one path on disk - already a single image in monbooru. Deleting removes the extra path and its file, keeping the canonical one.
